Parts of a Motherboard and Their Functions

The motherboard is the central hub of a computer. It is a printed circuit board (PCB) that routes power and data between the CPU, memory, storage, and all other connected hardware components. [cite: 19, 21, 25]

To help you identify parts quickly, the table below summarizes the key components found on a modern motherboard. [cite: 26]

CPU Socket

The CPU socket is the large connector that physically secures the processor and provides the electrical contact points needed for communication. [cite: 34] Socket matching is the most critical factor for motherboard compatibility. [cite: 36, 38]

• LGA (Land Grid Array): Pins are located on the motherboard (standard for Intel and modern AMD). [cite: 37, 38]
• PGA (Pin Grid Array): Pins are on the bottom of the processor (found on older AMD platforms). [cite: 38]
• Key Takeaway: If the socket doesn't match the CPU series, the chip will not fit and the system will not boot. [cite: 39]

Chipsets

The chipset acts as the motherboard's traffic controller, managing data flow between the CPU, storage, and I/O features. [cite: 40, 41] Modern boards integrate most functions into a single chipset, replacing the legacy Northbridge and Southbridge architecture. [cite: 43, 45]

The chipset determines the board's high-speed capabilities, including the number of available USB ports, SATA ports, and PCIe lanes. [cite: 46, 47]

RAM and Memory Slots

Memory slots (DIMM slots) connect RAM to the processor for fast data access. [cite: 48, 49]

• DDR4 vs DDR5: These generations are not cross-compatible; the physical notches are different. [cite: 51, 52]
• Dual-Channel: Installing matched RAM modules in specific slots (usually 2 and 4) doubles the available memory bandwidth. [cite: 54]
• Max Capacity: Defined by the chipset and number of slots (usually 2 or 4). [cite: 53]

Expansion Slots (PCIe)

PCIe slots allow you to add functionality via expansion cards. [cite: 59, 60] They vary by physical length and bandwidth (lanes). [cite: 62]

• x16 Slot: The longest slot, typically used for Graphics Cards (GPUs). [cite: 63]
• x1 / x4 Slots: Shorter slots used for Wi-Fi, sound cards, or USB expansion. [cite: 61, 64]
• Generations: Newer standards like PCIe 4.0 and 5.0 offer higher bandwidth for modern hardware. [cite: 62]

Storage Connectors

Motherboards use two primary standards for connecting storage devices: [cite: 68, 69]

M.2 Connector (NVMe)

A compact socket directly on the board for M.2 SSDs. NVMe drives use PCIe lanes to provide significantly faster speeds than traditional SATA drives. [cite: 74, 75]

SATA Ports

Used for traditional Hard Drives (HDDs) and SATA SSDs. [cite: 70] These require a separate data cable and power from the PSU. [cite: 71, 73]

Power Connectors and VRM

The motherboard receives power through two main inputs: the 24-pin ATX connector (main board power) and the 8-pin CPU power connector. [cite: 79, 80]

The VRM (Voltage Regulator Module) sits near the CPU. [cite: 81] It converts the PSU's high voltage into the precise, low voltage the processor requires. [cite: 82] High-quality VRMs with large heatsinks are essential for system stability. [cite: 84, 85]

BIOS Chip and CMOS Battery

• BIOS/UEFI Chip: Stores the firmware that initializes hardware during the boot process. [cite: 87, 88]
• CMOS Battery: A small coin-cell battery that keeps the system clock and BIOS settings saved when power is off. [cite: 90, 91]
• Resetting: Removing the battery or using a "Clear CMOS" jumper resets the BIOS to factory defaults. [cite: 92, 93]

I/O Ports and Headers

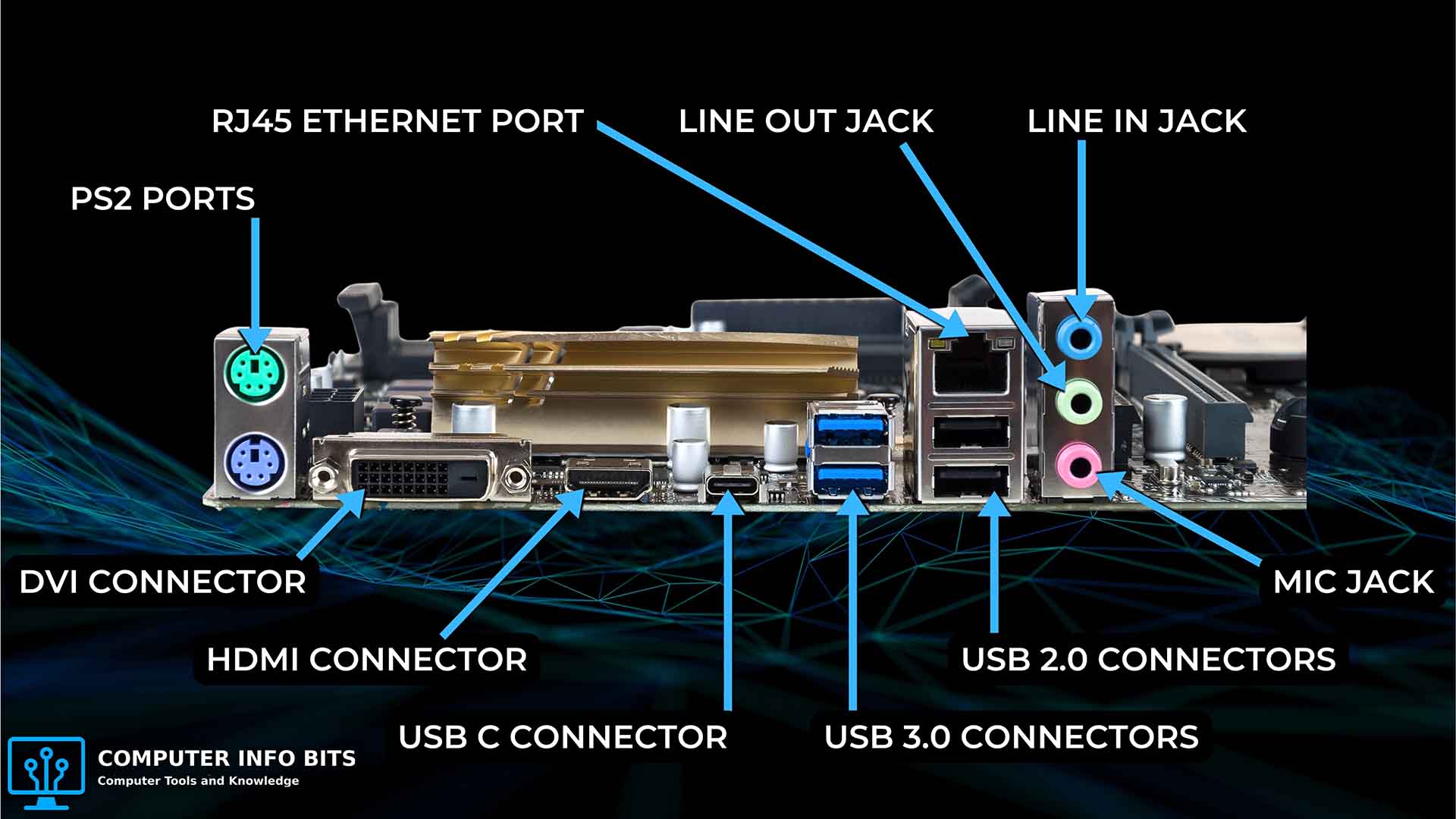

The Rear I/O Panel provides external connectivity on the back of the case: [cite: 94, 95]

• USB Ports: For peripherals (USB 2.0, 3.2, and USB4). [cite: 98]
• Ethernet: Wired connection for the local area network (LAN). [cite: 96, 98]
• Display Outputs: HDMI, DisplayPort, or legacy ports (only active with integrated graphics). [cite: 96, 98]
• Audio Jacks: Analog connections for speakers, headphones, and microphones. [cite: 96, 98]

Internal Headers

The Front Panel Header connects the computer case buttons (Power, Reset) and LEDs to the motherboard. [cite: 101, 102] Other internal connectors include USB Headers, Audio Headers, and Fan Headers. [cite: 103, 104]

Motherboard Types and Form Factors

The physical size of a motherboard is defined by its form factor, which affects compatibility with your computer case: [cite: 108, 111]

• ATX: Standard desktop size; offers the most expansion slots. [cite: 109, 110]
• Micro-ATX: A compact middle ground; usually has 4 RAM slots but fewer PCIe slots. [cite: 109, 112]
• Mini-ITX: Ultra-compact; typically limited to 2 RAM slots and 1 PCIe slot. [cite: 109, 112]
